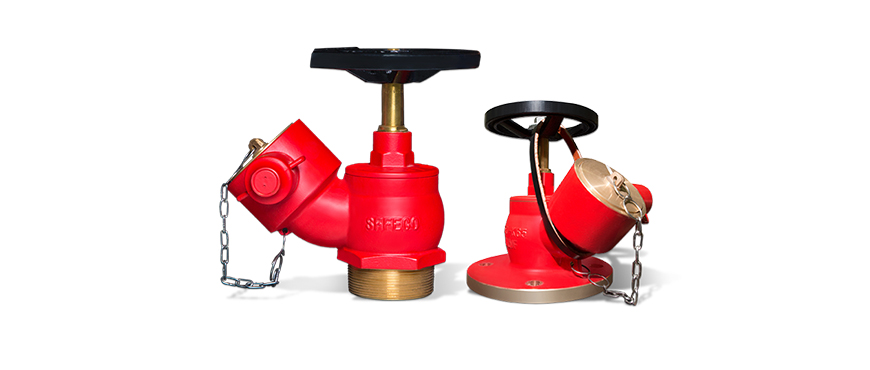

Oblique Valve Male Threaded Inlet
PRODUCT DESCIRIPTION
Landing valves are suitable for installation on wet risers in a building for firefighting purposes, permanently charged with water from a pressurized supply.
The landing valves are oblique type with threaded inlet and are manufactured standard with delivery hose connection and blank cap.
The landing valve are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar
FEATURES
- AS PER BSI KITE MARK
- Body material made of Copper alloy
- Hand wheel material made of are cast iron
- Blank cap material made of copper alloy
- Possible to replace the gland seal when under pressure with the valve fully closed
- Disc facing rubber are of replaceable type
- Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use
- The hand wheel is black painted and body to red
SPECIFICATIONS
| Model number | ASK/OBV/001 |
| Valve type | Oblique Threaded Inlet |
| Pressure Rating | Low Pressure Valve |
| Nominal Size | DN 2 ½” |
| Working Pressure | 15 bar maximum |
| Test Pressure | Valve Seat Test at 16.5 bar. Body Test at 22.5 bar |
| Water Flow Rate | 8.5 L/S @ 4 bar outlet pressure |
| SI.No | Description | Material |
| 1 | Han wheel | Grey Cast Iron |
| 2 | Stem | Copper Alloy |
| 3 | Bonnet | Copper Alloy |
| 4 | Body | Copper Alloy |
| 5 | Female Inst Outlet | Copper Alloy |
| 6 | Blank Cap | Copper Alloy |
| 7 | Renewable Disk Facing | Rubber |
| 8 | Washer | Rubber |
| 9 | Gland Seal | Rubber |
| 10 | Bonnet Seal | Teflon |
| 11 | Gland | Copper Alloy |
| 12 | Strap with pad lock | Strap-Leather (12 mm Thick) LOCK-Non Ferrous |
