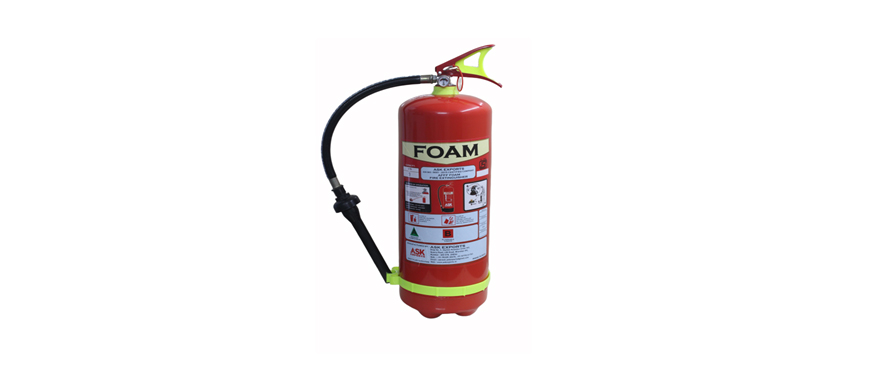

6 LTR FOAM Portable Fire Extinguisher
| MODEL | ASK/F/006 |
| Capacity (kg) | 6 |
| Anti-Corrosive Inhibitor | Epoxy Polyester Powder Coating |
| AS Per Confirming Standards | AS Per IS / BS EN3/ T.B.S / K.B.S |
| Type of Extinguisher | Constant Pressure |
| Type of Extinguisher Media | AFFF Foam And Water |
| Expellant | Pressurized with N2 gas |
| Minimum Effective Discharge(%) | 95 |
| Minimum Jet Length (Mtrs.) | More than 3-4 Mtr. |
| Discharge Time (Sec.) | More than 13 sec |
| Hydraulic Test Pressure (kgf/cm2) | 35 |
| Operating Position | Upright |
| Charged Pressure(kgf/cm2) | 15 |
| Operating Temperature Range(C°) | 0°to (+)55° |
| Operating Valve | Squeeze Grip Type with Discharge hose and nozzle |
| Fire Rating | 2A, 21B |
| Body Diameter | 160 mm ( As Per Customer Requirement) |
| Body Height | 400 mm ( As Per Customer Requirement) |
| Head Valve | Brass Chrome Plated |
| Cylinder Material | CRC Deep Drawn Sheet |
9 LTR FOAM Portable Fire Extinguisher
| MODEL | ASK/F/009 |
| Capacity (kg) | 9 |
| Anti-Corrosive Inhibitor | Epoxy Polyester Powder Coating |
| AS Per Confirming Standards | AS Per IS / BS EN3/ T.B.S / K.B.S |
| Type of Extinguisher | Constant Pressure |
| Type of Extinguisher Media | AFFF Foam And Water |
| Expellant | Pressurized with N2 gas |
| Minimum Effective Discharge(%) | 95 |
| Minimum Jet Length (Mtrs.) | More than 5-6 Mtr. |
| Discharge Time (Sec.) | More than 13 sec |
| Hydraulic Test Pressure (kgf/cm2) | 35 |
| Operating Position | Upright |
| Charged Pressure(kgf/cm2) | 15 |
| Operating Temperature Range(C°) | 0°to (+)55° |
| Operating Valve | Squeeze Grip Type with Discharge hose and nozzle |
| Fire Rating | 4A, 55B, C |
| Body Diameter | 175 mm (As Per Customer Requirement) |
| Body Height | 475 mm (As Per Customer Requirement) |
| Head Valve | Brass Chrome Plated |
| Cylinder Material | CRC Deep Drawn Sheet |
