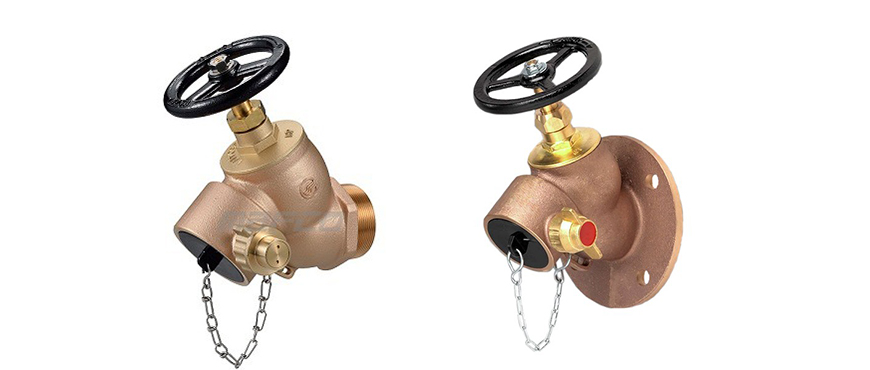

Bib Nose Valve

Application

Landing valve used for fire fighting can be installed in fire hydrant system indoor or outdoor. Landing valve sometimes is also called as indoor fire hydrant, so it is usually installed in the buildings for wet-type fire hydrant system.

Technical Specification

Body                : Copper alloy, Thickness ≥3mm

Hand wheel     : Grey cast iron or Aluminum alloy

Black cap        : Copper alloy or Plastic

Inlet                 : Flanged or BSP Screwed

Outlet              : Female instantaneous to AS PER BS336

Surface            : Red or yellow painting

Test pressure   : 22.5 bar

Flow rates       : More than 8.5L/S

Fully open       : 4.5 turns

Valve Size Range
