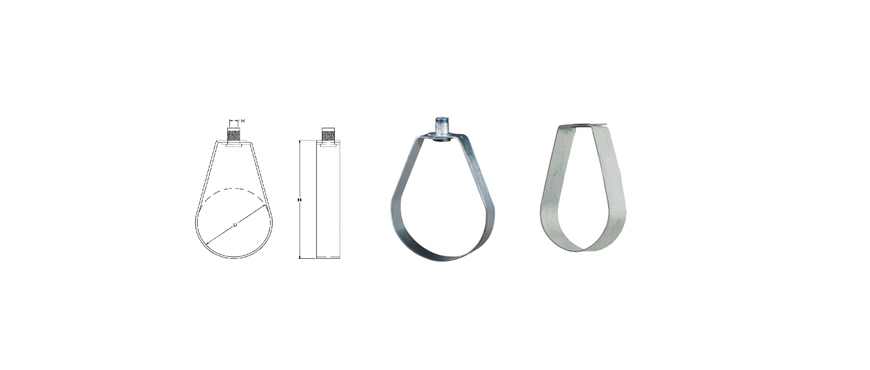

Sprinkler Hanger

SPRINKLER HANGER WHIT NUT

APPLICATION:

A   SPRINKLER  HANGER  RECOMMENDED  TO  PROVIDE VERTICAL   SUPPORT    TO
NON INSULATED  PIPING  SYSTEMS. BY   ADJUSTING
THE  POSITION OF THE   SPRINKLER NUT ON   THE    HANGER   ROD  AT  THE  TOP
OF   THE  HANGER,  PIPE    ELEVATION  CAN  BE  ALTERED.

CONSTRUCTION:

A  SPRINKLER  HANGER  CONSISTS  OF  A  PIECE  OF  CARBON  STEEL  SHAPED
TO SUPPORT PIPE. GIVES DOUBLE THICKNESS AT THE SUPPORT. MOST SUITABLE FOR FIRE EXTINGUISHING PIPES       INSTALLATION.

MATERIAL:

MILD STEEL .ALSO OTHER MATERIALS  CAN ALSO BE PROVIDED ON REQUEST

MAXIMUM TEMPERATURE:

343°C (650°F)

  FINISH AVAILABLE:

PLAIN, HOT DIP GALVANIZED, ELECTRO- GALVANIZED.



Product Code		 Nominal Pipe Size Pipe OD(mm)
D

HEIGHT		 Hanger
Rod Size (mm)		 MAX
LOAD (KG)
In. mm
 ASK-SH – 0.75 ¾” DN20 26.7 61 M10 220

   ASK-SH – 01

 1" DN25 33.4 70 M10 220
 ASK-SH – 1.25 1 ¼” DN32 42.1 78 M10 220

   ASK-SH – 1.5

 1 ½” DN40 48.2 84 M10 220

   ASK-SH – 02

 2” DN50 60.3 102 M10 220
ASK-SH – 2.5 2 ½” DN65 73.0 118 M10 300

   ASK-SH – 03

 3” DN80 88.9 144 M10 300
ASK-SH – 04 4” DN100 114.3 176 M10 300

   ASK-SH – 06

 6” DN150 168.3 262 M12 550
ASK-SH – 08 8” DN200 219.1 305 M12 1300
ASK-SH – 10 10’’ DN250 273.0 315 M12 1300
ASK-SH – 12 12’’ DN300 323.8 378 M12 1300


 SPRINKLER HANGER WITHOUT NUT



Product Code		 Nominal Pipe Size Pipe OD
(mm)
D		 Height Hole Size
(mm)
 R

MAX LOAD (KG)
In. mm
ASK-SHWN – 0.75 ¾” DN20 26.7 61 M10 220
ASK-SHWN – 01 1" DN25 33.4 70 M10 220
ASK-SHWN – 1.25 1 ¼” DN32 42.1 78 M10 220
ASK-SHWN – 1.5 1 ½” DN40 48.2 84 M10 220
ASK-SHWN – 02 2” DN50 60.3 102 M10 220
ASK-SHWN – 2.5 2 ½” DN65 73.0 118 M10 300
ASK-SHWN – 03 3” DN80 88.9 144 M10 300
ASK-SHWN – 04 4” DN100 114.3 176 M10 300
ASK-SHWN – 06 6” DN150 168.3 262 M12 550
ASK-SHWN – 08 8” DN200 219.1 305 M12 1300
ASK-SHWN – 10 10’’ DN250 273.0 315 M12 1300
ASK-SHWN – 12 12’’ DN300 323.8 378 M12 1300
