APPLICATION:
PIPE HANGER WITH EPDM LINING IS RECOMMENDED FOR NON-INSULATED
STATIONARY PIPELINES IN A HORIZONTAL POSITION. IT CAN BE USE FOR
SUPPORTING PIPES ALONG ROOF.
CONSTRUCTION:

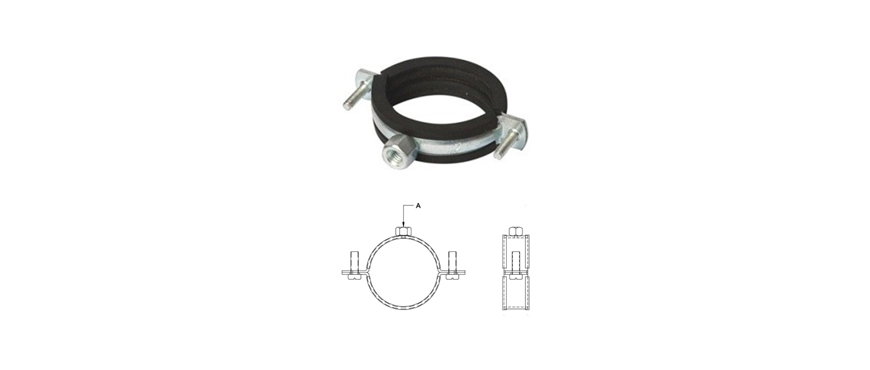

PIPE HANGER WITH EPDM LINING CONSISTS OF PIECE CARBON STEEL SHAPED TO WRAP AROUND THE PIPE, MADE FROM SHAPED CARBON STEEL PLATE.
THE SELECTION OF THE PROPER PIPE HANGER WITH EPDM LINING DEPENDS
UPON THE TEMPERATURE OF THE PIPING SYSTEM AND LOAD TO BE CARRIED.
PERMITS INSTALLATION BEFORE AND AFTER PIPE IS IN PLACE.
MATERIAL:
MILD STEEL ALSO OTHER MATERIALS CAN ALSO BE PROVIDED ON REQUEST.
TEMPERATURE RANGE:-
-20°C TO 110°C
FINISH AVAILABLE:
PLAIN, HOT DIP GALVANIZED, ELECTRO-GALVANIZED.
| Product Code | Nominal Pipe Size | Pipe OD (mm) | Range (mm) | Hanger Rod Size(mm) ( A ) |
Side Screw size | MAX LOAD (KG) | |
| In. | mm | ||||||
| ASK-PHRL 0.5 | ½” | DN15 | 21.3 | 20-25 | M10 | M6 | 460 |
| ASK-PHRL 0.75 | ¾” | DN20 | 26.7 | 26-30 | M10 | M6 | 460 |
| ASK-PHRL 01 | 1" | DN25 | 33.4 | 32-36 | M10 | M6 | 460 |
| ASK-PHRL 1.25 | 1 ¼” | DN32 | 42.1 | 38-43 | M10 | M6 | 460 |
| ASK-PHRL 1.50 | 1 ½” | DN40 | 48.2 | 47-51 | M10 | M6 | 460 |
| ASK-PHRL 02 | 2" | DN50 | 60.3 | 60-64 | M10 | M6 | 460 |
| ASK-PHRL 2.50 | 2 ½” | DN65 | 73.0 | 74-80 | M10 | M6 | 570 |
| ASK-PHRL 03 | 3" | DN80 | 88.9 | 87-92 | M10 | M6 | 570 |
| ASK-PHRL 3.50 | 3 ½” | DN90 | 101.6 | 99-105 | M10 | M6 | 570 |
| ASK-PHRL 04 | 4" | DN100 | 114.3 | 113-118 | M10 | M6 | 570 |
| ASK-PHRL 05 | 5” | DN125 | 141.3 | 138-142 | M12 | M6 | 570 |
| ASK-PHRL 06 | 6" | DN150 | 168.3 | 168-172 | M12 | M8 | 570 |
| ASK-PHRL 08 | 8" | DN200 | 219.1 | 215-220 | M12 | M8 | 930 |
